Power Distribution Board (PDB)
Power Distribution Boards (PDB) are secondary distribution panels that distribute electrical power from the main LT panel to individual loads like lights, sockets, small motors, and equipment. Available in floor-standing and wall-mount variants, our PDBs are designed for efficient, safe, and organised power distribution in commercial, industrial, and residential applications.
Standard Features & Specifications
- MCCB/MCB incomer with isolator
- Single phase and three phase outgoing ways
- ELCB/RCCB earth leakage protection
- Phase sequence relay for phase protection
- Volt meter and ammeter on incomer
- Busbars for easy cable termination
- Powder coated aesthetically finished enclosure
- DIN rail mounted MCBs for sub-circuits
- Transparent window for MCB status viewing
Where It Is Used
- Office buildings and commercial spaces
- Industrial shopfloor sub-distribution
- Hospitals and data centres
- Hotels and residential complexes
- Construction site temporary distribution
- Utility and maintenance lighting panels
Technical Data
| Parameter | Specification |
|---|---|
| Incomer | TPN MCB/MCCB 32A to 800A |
| Outgoing | Single phase / Three phase MCBs |
| Protection | ELCB/RCCB + MCB |
| Enclosure | Wall mount / Floor standing |
| Busbar | 4-pole copper / aluminium |
| Finish | Powder coated RAL7035 grey |
| IP Rating | IP42 / IP54 |
| Standards | IEC 61439, IS 8623 |

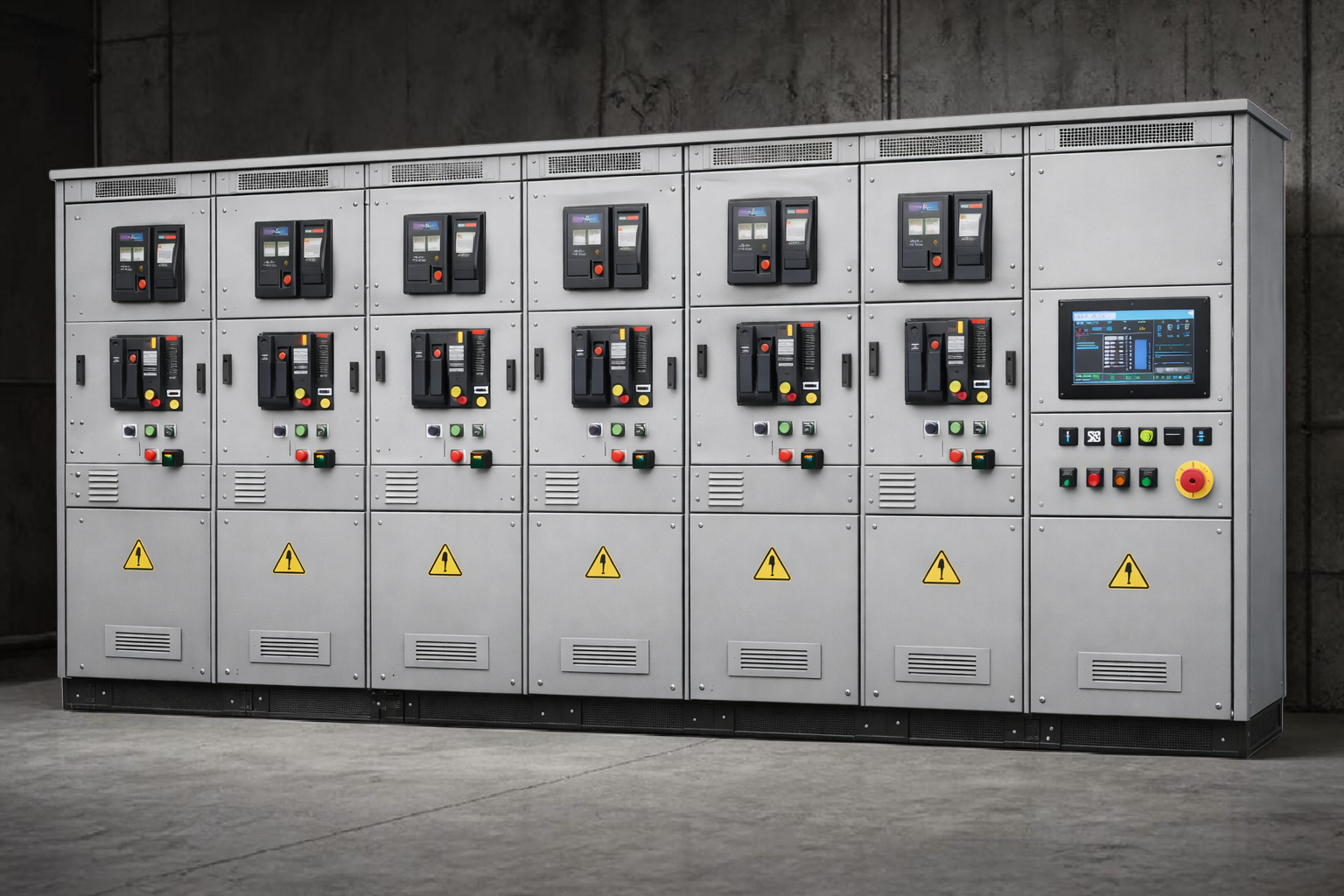

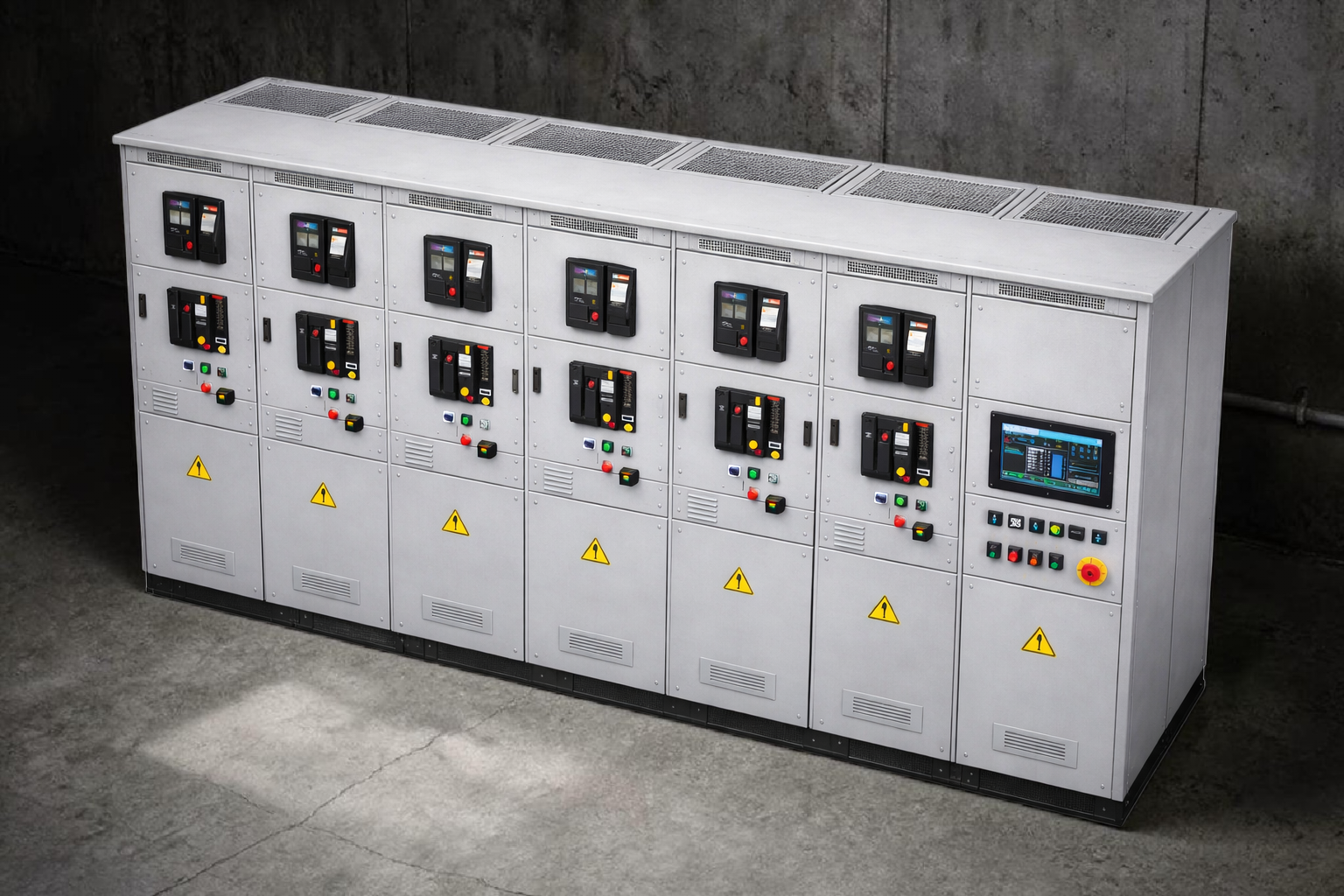

Product Images
Frequently Asked Questions
PDB (Power Distribution Board) is a general term for secondary distribution. MDB (Main Distribution Board) refers to the main LT board receiving power from the transformer.
Yes, we include spare ways and space provision in all our PDB designs for future additions.
Yes, we manufacture both surface mount (projecting) and flush mount (recessed) PDB enclosures.
