Power Control Centre (PCC) Panel
Power Control Centre (PCC) panels are main incomer distribution panels used for primary power distribution in industrial plants. Designed for high-capacity distribution up to 6300A, our PCC panels incorporate advanced bus bar systems, air circuit breakers (ACBs), and metering equipment to provide reliable, monitored power distribution for large industrial facilities.
Key Features
Standard Features & Specifications
- Air Circuit Breakers (ACB) as incomer and outgoing feeders
- Aluminium/Copper bus bars rated up to 6300A
- Ammeter, voltmeter, and power factor meter
- Energy meters for load monitoring
- Surge Protection Devices (SPD)
- Door interlocking system for safety
- Cable entry from bottom or top
- IP42/IP54 protection class available
- Anti-condensation heaters
Applications
Where It Is Used
- Cement plants and steel plants
- Chemical and pharmaceutical manufacturing
- Textile mills and spinning mills
- Food processing plants
- Commercial complexes and hospitals
- Pumping stations and utilities
Technical Specifications
Technical Data
| Parameter | Specification |
|---|---|
| Voltage Rating | 415V AC, 3 Phase 4 Wire |
| Current Rating | Up to 6300A |
| Short Circuit Withstand | Up to 50kA for 1 sec |
| Degree of Protection | IP42, IP54 |
| Form of Separation | Form 1 to Form 4b |
| Standard | IEC 61439, IS 8623 |
| Busbar Material | Aluminium / Copper |
| Enclosure Material | CRCA Steel, Powder Coated |
Gallery

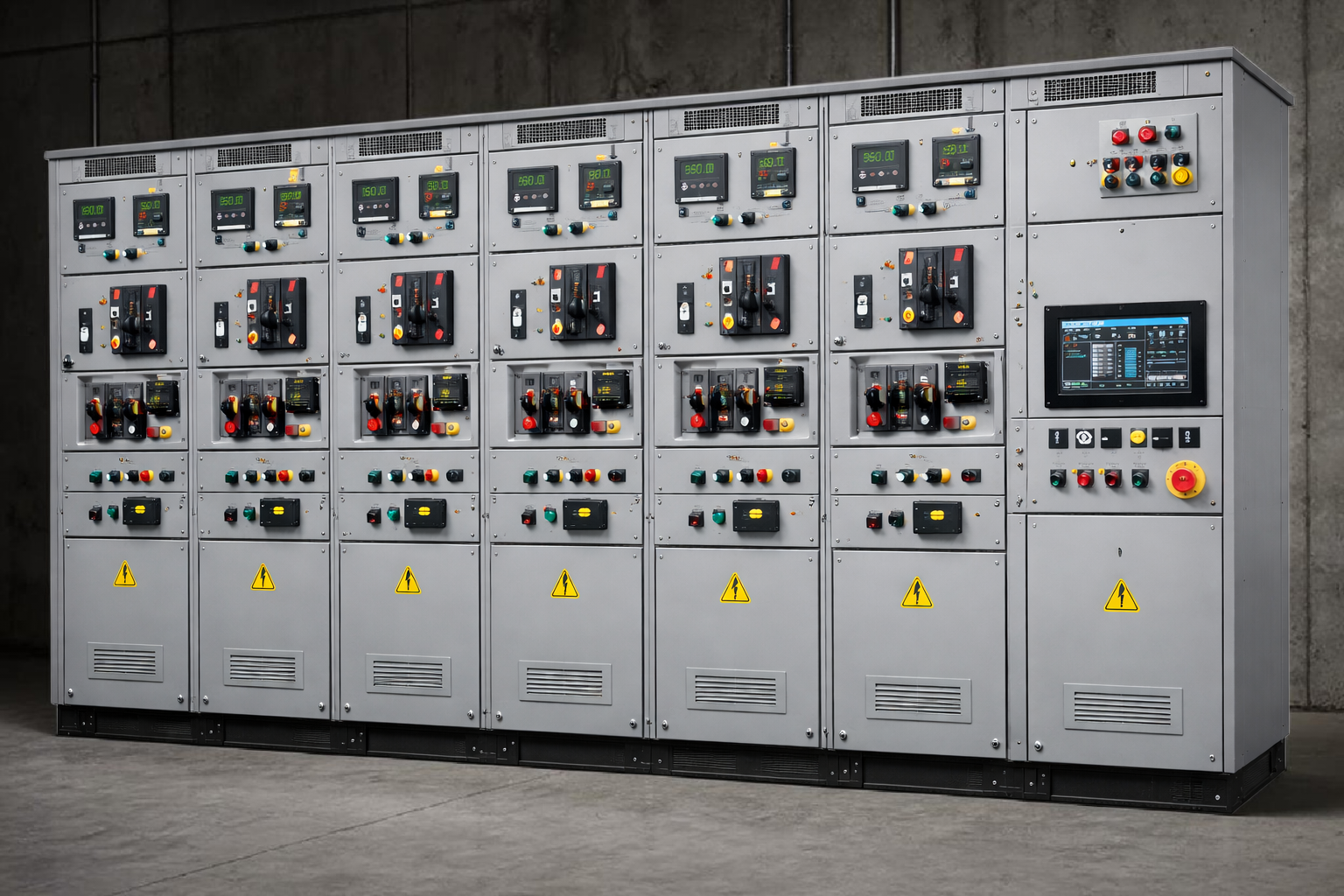

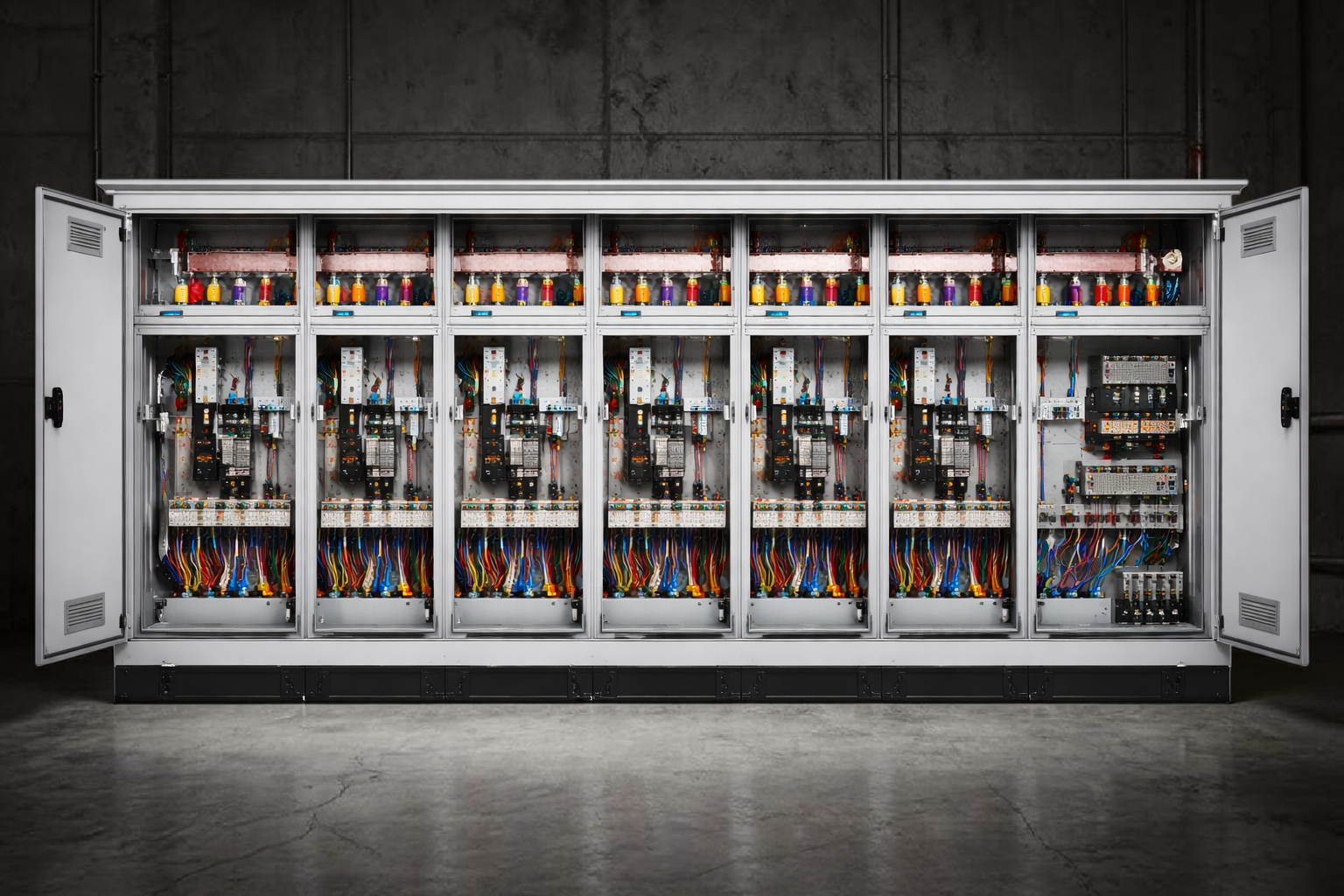

Product Images
FAQ
Frequently Asked Questions
What current ratings are available for PCC panels?
Our PCC panels are available from 800A up to 6300A, customised to your load requirements.
Can the PCC panel be used for outdoor installation?
Yes, we provide IP55/IP65 rated outdoor enclosures with weatherproofing for outdoor installations.
What protection devices are included?
PCC panels include ACBs, under/over voltage relays, earth fault protection, and surge protection devices.
