Overview
Feeder Pillar Panel
Feeder Pillar panels are outdoor-rated power distribution units designed for power distribution in public areas, industrial yards, construction sites, and utility projects. Our feeder pillars are manufactured from heavy-gauge steel with powder coating for corrosion resistance, providing reliable power distribution in harsh outdoor environments.
Key Features
Standard Features & Specifications
- Heavy gauge MS/GI sheet construction
- Powder coated or hot-dip galvanised finish
- IP55 / IP65 weatherproof protection
- MCCB/MCB incomer and outgoing feeders
- Padlocking provision for security
- Cable entry from bottom with gland plate
- Anti-condensation heater
- Direction indicator and circuit labels
- Earthing provision and copper bus bar
Applications
Where It Is Used
- Street lighting distribution
- Construction site temporary power
- Pump houses and irrigation projects
- Industrial yard distribution
- Highways and expressway lighting
- Parks, stadiums, and public facilities
Technical Specifications
Technical Data
| Parameter | Specification |
|---|---|
| Enclosure Material | MS CRCA / GI Sheet 2mm |
| Protection | IP55 / IP65 |
| Finish | Epoxy Powder Coat / Hot Dip Galvanised |
| Incomer | MCB / MCCB 100A to 800A |
| Outgoings | MCB / MCCB 6A to 250A, 4 to 16 ways |
| Bus Bar | Aluminium / Copper |
| Mounting | Free-standing floor mount |
| Standards | IEC 61439, IS 8623 |
Gallery

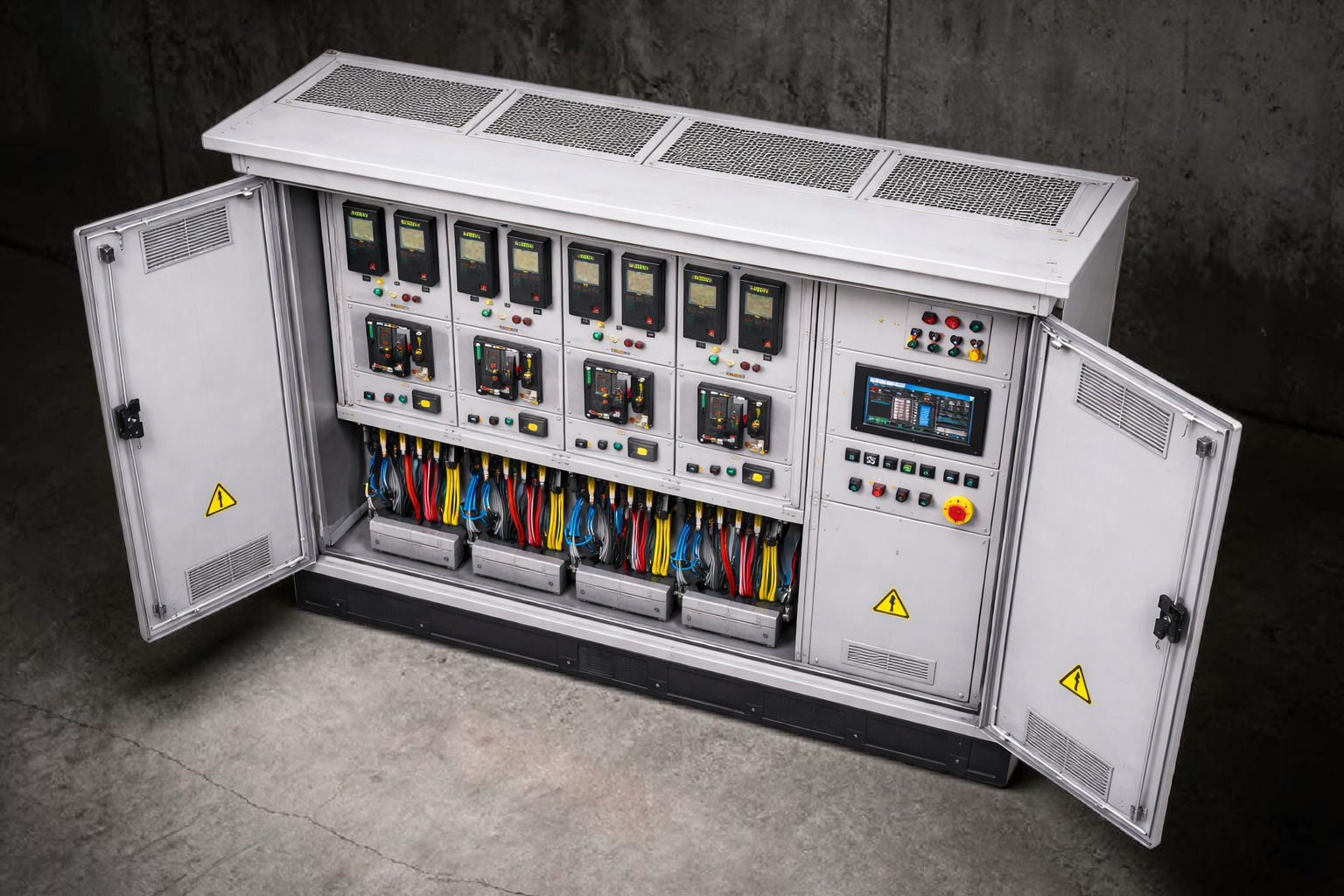

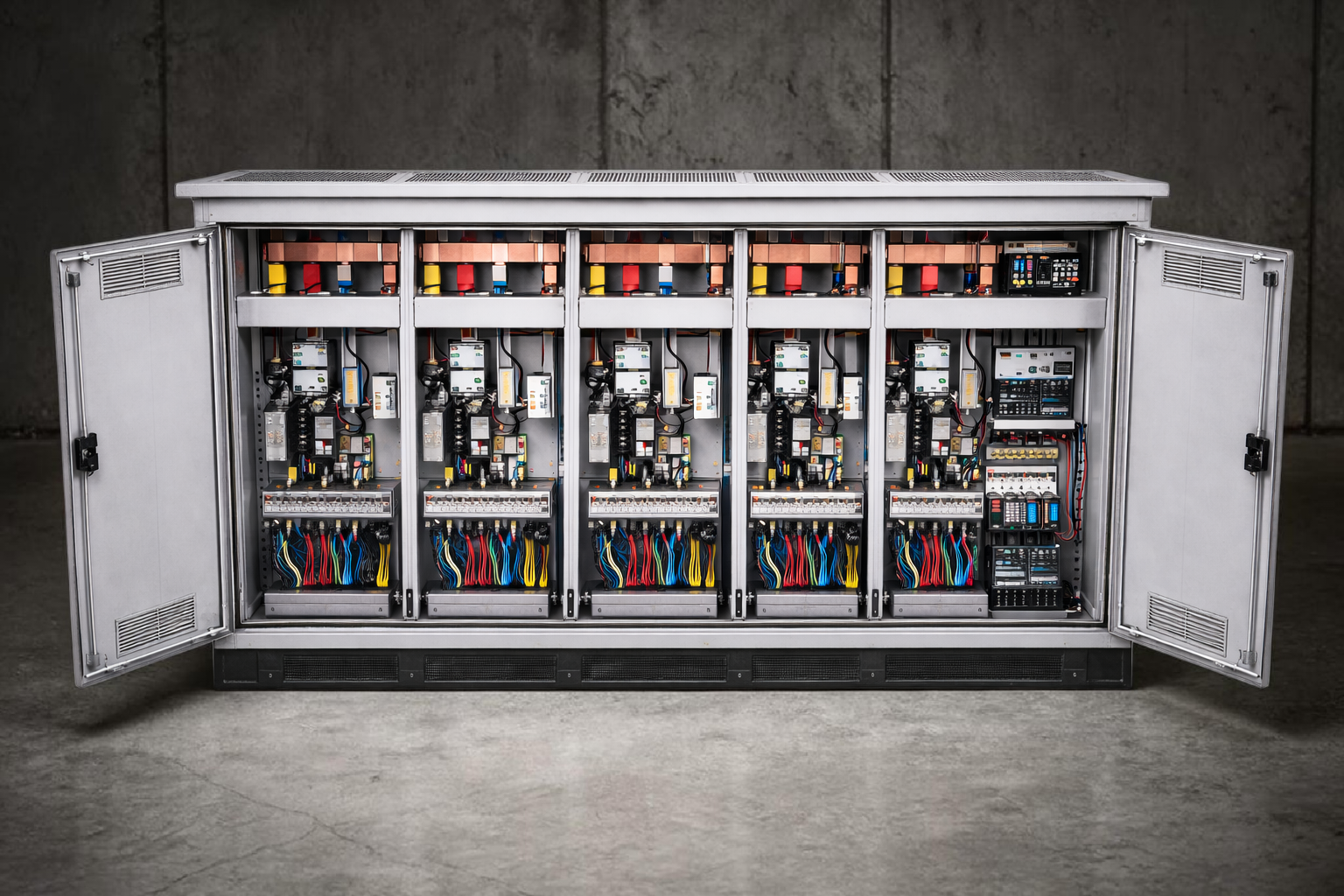

Product Images
🔍
FAQ
Frequently Asked Questions
Are feeder pillars suitable for coastal/corrosive areas?
Yes, we offer hot-dip galvanised and stainless steel options for coastal and corrosive environments.
Can I have metering in the feeder pillar?
Yes, energy meters and CT-operated meters can be incorporated in the feeder pillar.
What is the maximum current capacity?
Our feeder pillars are available up to 800A incomer capacity with multiple outgoing feeders.
